XSSMLXL

Specifications

Weight Capacity325 lb
Overall Length41"
Overall Width20"
Seat Depth14.5"
Seat Width17"
Per-Charge Range, Maximum9 mi
Maximum Speed4 mph
Turning Radius37.5"
Weight, without batteries84 lb
Weight, with batteries100 lb
Heaviest Piece Weight35 lb

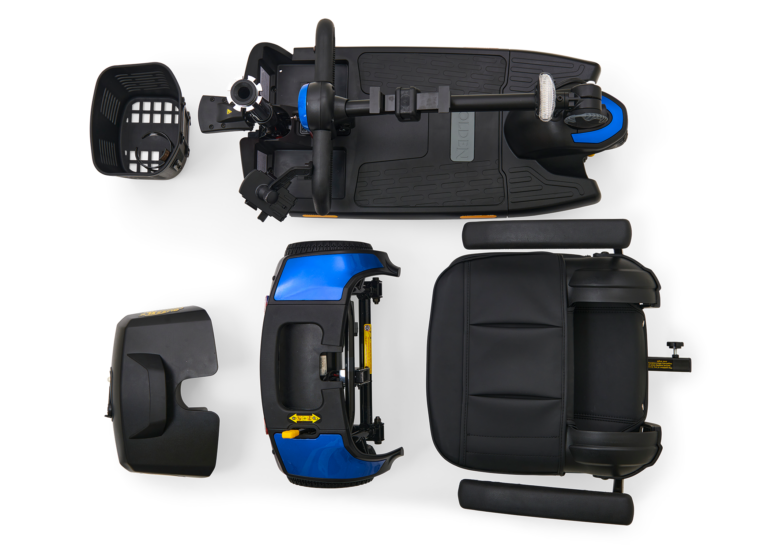

DisassemblyQuick Disassembly into 5 Pieces
Front Wheel Diameter7.5"
Rear Wheel Diameter8"
Ground Clearance4"
Tire TypeSolid, Low Profile
Motor Type24V DC
Brake TypeElectro-Mechanical
Controller Type50 Amp Dynamic
Battery Type2-12 AH or 2-22 AH
Battery Weight16 lb
Battery ChargerOff-Board
Goes In ReverseYes
Freewheel ModeYes
Tiller StyleDelta

Specifications

Weight Capacity325 lb
Overall Length41"
Overall Width20"
Seat Depth14.5"
Seat Width17"
Per-Charge Range, Maximum9 mi
Maximum Speed4 mph
Turning Radius37.5"
Weight, without batteries84 lb
Weight, with batteries100 lb
Heaviest Piece Weight35 lb
DisassemblyQuick Disassembly into 5 Pieces
Front Wheel Diameter7.5"
Rear Wheel Diameter8"
Ground Clearance4"
Tire TypeSolid, Low Profile
Motor Type24V DC
Brake TypeElectro-Mechanical
Controller Type50 Amp Dynamic
Battery Type2-12 AH or 2-22 AH
Battery Weight16 lb
Battery ChargerOff-Board
Goes In ReverseYes
Freewheel ModeYes
Tiller StyleDelta
